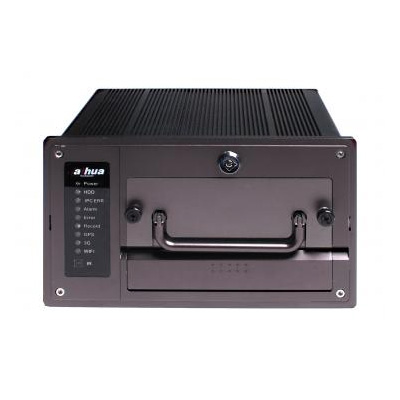

VIDEO RECORDER MOBILE 4 CHANNELS - NETWORK NVR0404MF-GCW
Extremely portable 4-channel network video recorder with real-time 1080P video quality, H.264 dual compression video and information such as GPS and video can be downloaded from a wireless network (3G / 4G / WIFI).
· Up to 4 channel with 1080P realtime live view
· H.264 dual-stream video compression
· HDMI/VGA/TV simultaneous video output
· Support 2 SATA HDD, 2 USB3.0
· Aviation connectors adopted(4 M12 POE connectors
optional)
· ONVIF Version 2.3 conformance
· Multiple monitoring: Web viewer, CMS(DSS) & DMSS
-
System
Main Processor
Embedded microprocessor
Operating System
Embedded LINUX
Audio and Video
IP Camera Input
4 Channel
Two-way Talk
1 Channel Input, 1 Channel Output, RCA
Display
Interface
1 HDMI, 1 VGA, 2 TV
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768,800×600
Display
Split
1/4
Privacy Masking
4 rectangular zones (each camera)
OSD
Camera title, Time, Video loss, Camera lock, Motiondetection, Recording
Recording
Video/Audio Compression
H.264/G.711/PCM
Record Rate Max
200 Mbps
Bit Rate
48~8192Kb/s
Record Mode
Manual, Schedule(Regular(Continuous), MD, Alarm),Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec,
Post-record:
10~300 sec
