TRANSCEIVERS - CONVERTERS

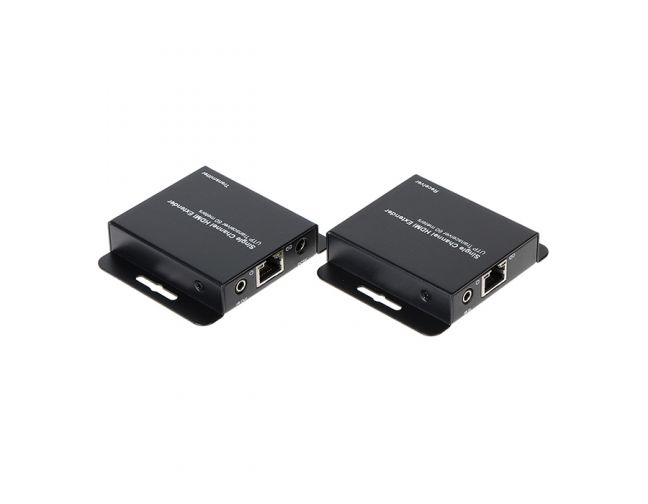

HDMI extender quality converter for use in security cameras, recorders, etc.

- Power supply: Input voltage DC5V, only supply for transmitter.
- Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
- Transmission distance: HDMI transmission distance 60m (max.196.85ft).
- Infrared function: support to transmit one-way infrared remote control signal.
- Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI
1.3; Support HDMI local loop output; Support EDID.
- Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
- Appearance structure: No need to install driver program and set network parameters, easy to use and
convenient to install....

Reliable and quality VGA converter for application on security cameras, recorders etc.

- Power supply: No need additional power supply.
- Transmission effect: Real-time transmission video without compression, no delay,
strong anti-interference.
- Transmission distance: VGA video signal high fidelity transmission 75M (max)
- Main functions: Use single UTP (CAT-5E and CAT-6) transmit 1-ch video, lower cost.
- Protection and anti-interference: Excellent anti-thunder, anti-static and
anti-interference capabilities.
- Appearance structure: No need to install driver program and set network parameters,
easy to use and convenient to install....

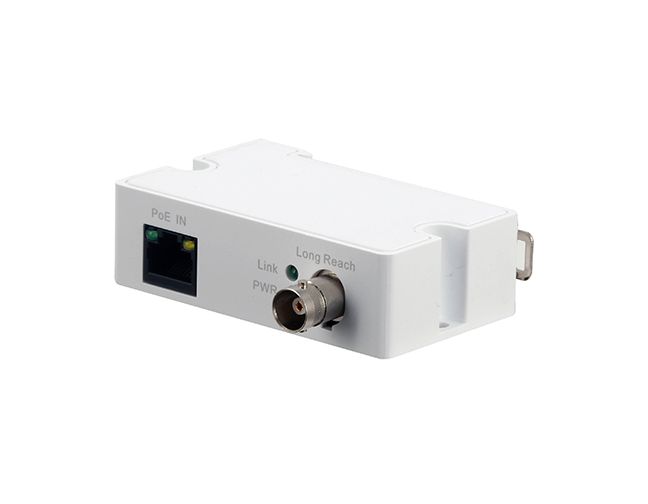

Excellent quality and reliability converter for use on security cameras, recorders etc.

> Supports IEEE802.3, IEEE802.3u standards
> Supports IEEE802.3af and IEEE802.3at power supply standards
> Port: 1*RJ45 10/100Mbps, 1*BNC
> Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
> Supports MDI/MDIX self-adaption
> Supports long range power supply transmission via coaxial cable...

Excellent quality and manufacturing converter, ideal for security cameras, recorders etc.

· Supports IEEE802.3, IEEE802.3u standards
· Port: 1*RJ45 10/100Mbps, 1*BNC
· Supports RG59 coaxial cable: 400m/100Mbps,
1000m/10Mbps
· Supports MDI/MDIX self-adaption
· Supp...

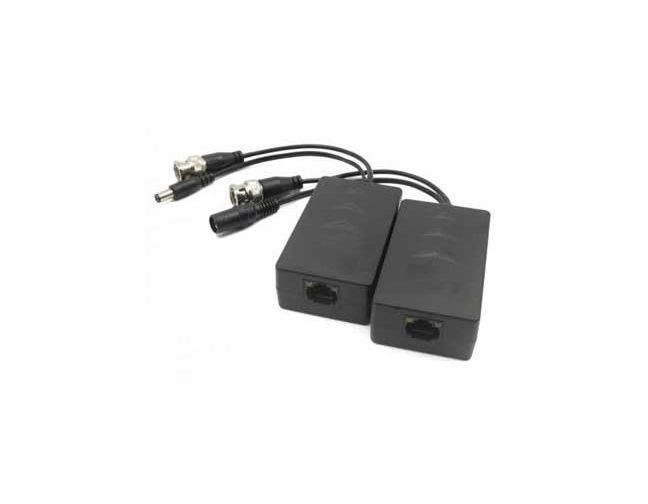

Outstanding quality and reliability 1 channel transceiver and converter for security cameras, recorders etc.

- Power supply: Input voltage DC24-36V, can provide DC12V 8W(max) power supply to remote cameras,
simplify engineering wiring.
- Transmission effect: Real-time transmission video, no delay, strong anti-interference.
- Transmission distance: 400m (max).
- Main functions: Use single UTP (CAT-5E and CAT-6) real-time transmit 1-ch HD video signal and 1-ch
DC power.
- Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
- Appearance structure: ABS engineering plastics shell, small size, use RJ45 standard interface
connection mode....

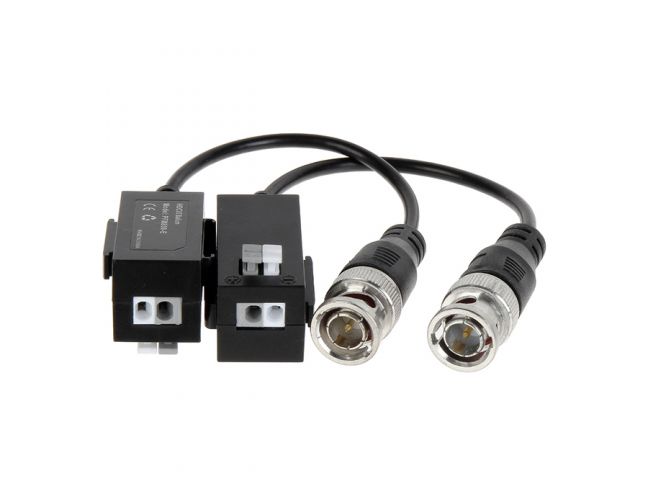

Reliable and quality 1 channel transceiver and converter for security cameras, recorders etc.

· Real-time transmission over UTP CAT5E/6 cable;
· Passive, no need for power supply;
· Excellent anti-thunder, anti-static and anti-interference capabilities;
· Compatible format: HDCVI/TVI/AHD/CVBS;
· With female BNC connector, and pluggable screw terminal connections...
