HIDDEN CAMERA WITH MOVEMENT SENSOR 2MP HDCVI MOTION EYE HAC-HUM1220A-PIR
Hidden High Definition 2MP Camera with Motion Sensor
· Max 30fps@1080P
· HD and SD output switchable
· 2.8mm fixed lens
· 12m/100°detecting range/angle
· Two level detection sensitivity adjustable
· Built-in tamper switch
· DC12V
-
Camera
Image Sensor
1/2.9" CMOSEffective Pixels
1920(H)×1080(V), 2MPScanning System
ProgressiveElectronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000sMinimum Illumination
0.02Lux/F2.0(Color), 0.002Lux/F2.0(B/W)S/N Ratio
More than 65dBLens
Lens Type
Fixed lens / Fixed irisMount Type
Board-inFocal Length
2.8mmMax Aperture
F2.0Angle of View
H: 100.5°Pan/Tilt/Rotation
Pan: 0° ~ 180°
Tilt: 0° ~ 180°
Rotation: 0° ~ 360°
Video Resolution
1080P (1920×1080)
HAC-HUM1220A-PIRRelated Products
Manufacturer: DAHUA

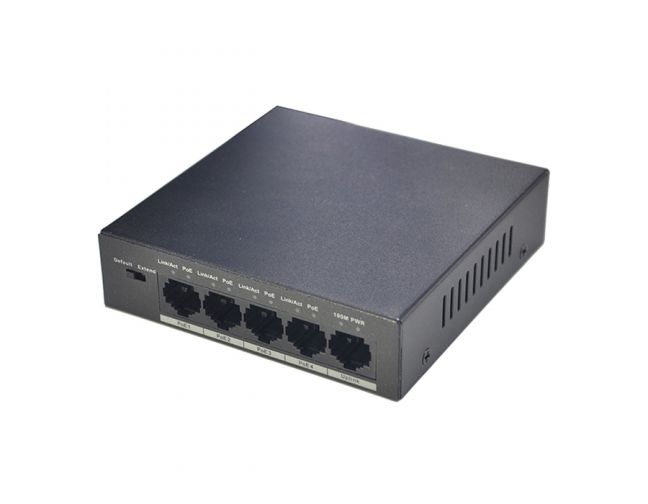

Reliable and quality two-level PoE Ethernet switch with 250 meters of maximum data transmission distance.
· Two-layer PoE Ethernet switch
· MAC auto study and aging, MAC address list capacity is 1K
· Support IEEE802.3af, IEEE802.3at standard
· Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
· Default Mode: The device works as a general switch and all
ports support 10/100Mbps auto-negotiation.
· Extend Mode: VLAN isolation is enabled. Ports 1-4 will be
isolated respectively (10Mbps auto-negotiation), but they can
communicate with the Uplink port. Besides, the transmission
distance of power and network data is up to 250m....
· Two-layer PoE Ethernet switch
· MAC auto study and aging, MAC address list capacity is 1K
· Support IEEE802.3af, IEEE802.3at standard
· Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
· Default Mode: The device works as a general switch and all
ports support 10/100Mbps auto-negotiation.
· Extend Mode: VLAN isolation is enabled. Ports 1-4 will be
isolated respectively (10Mbps auto-negotiation), but they can
communicate with the Uplink port. Besides, the transmission
distance of power and network data is up to 250m....
Manufacturer: DAHUA
Reliable 32-channel network recorder with true-to-life 1080P real-time video and H.264 / MJPEG dual image compression
Up to 32/64 channel with 1080P realtime live view
H.264/MJPEG dual codec decoding
Max 256Mbps incoming bandwidth
2HDMI/VGA/TV simultaneous video output
16 channel synchronous realtime preview, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon,
CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and
etc.
ONVIF Version 2.3 conformance
3D intelligent positioning with Dahua PTZ camera
Support 16 SATA HDDs up to 64TB, 1 eSATA up to 16TB,4 USB2.0
Support RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS...
Up to 32/64 channel with 1080P realtime live view
H.264/MJPEG dual codec decoding
Max 256Mbps incoming bandwidth
2HDMI/VGA/TV simultaneous video output
16 channel synchronous realtime preview, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon,
CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and
etc.
ONVIF Version 2.3 conformance
3D intelligent positioning with Dahua PTZ camera
Support 16 SATA HDDs up to 64TB, 1 eSATA up to 16TB,4 USB2.0
Support RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS...
Manufacturer: DAHUA
Outstanding quality power supply which is suitable for cameras
Model
DH-PFM322
General Input
AC100~240V, 50/60Hz, max. 0.6A
Output
DC12V(﹢7%,-3%)_0.7A(±3%) (each group)
Outgoing Line Length
AC wire: 50cm (1.64ft), DC wire: 80cm (2.62ft)
Working Temperature
-30℃~+70℃(-22℉~+158℉)
Working Humidity
<90% RH
Weight
210g(0.46lb)
Dimension(LxWxH)
148mmx70mmx31mm (5.83”x2.76“x1.22”)...
Model
DH-PFM322
General Input
AC100~240V, 50/60Hz, max. 0.6A
Output
DC12V(﹢7%,-3%)_0.7A(±3%) (each group)
Outgoing Line Length
AC wire: 50cm (1.64ft), DC wire: 80cm (2.62ft)
Working Temperature
-30℃~+70℃(-22℉~+158℉)
Working Humidity
<90% RH
Weight
210g(0.46lb)
Dimension(LxWxH)
148mmx70mmx31mm (5.83”x2.76“x1.22”)...
