ID TAGS

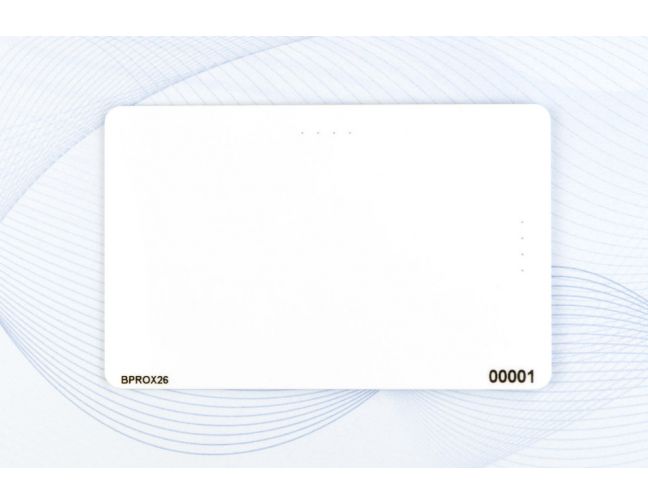

There are usually two kinds of material to produce plastic card, PVC and ABS. PVC is most widely used material, PVC is the abbreviation of PolyvinylChloride, it is one of plastic adornment materials, the main raw material is polyvinyl chloride resin which have added anti-aging agent and modification agent through mixing rubber, rolling, vacuum to produce. ...

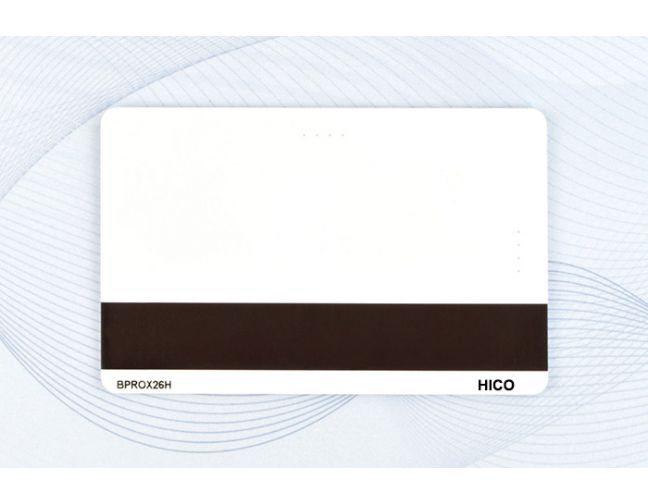

The magnetic stripe card is a kind of medium card can be writen down magnetism the.. It is made by the high strength , able to bear the high-temperature plastics or the paper coating plastics. Can be dampproof, wear-resisting and having certain flexibility. It is reliable to comparatively carry convenient , use steadily. Usually, One side of magnetic stripe card prove message of briefing and etc. to have to print. Such as inserting the card direction.. Another side is magnetosphere or magnetic stripes. Have 2-3 magnetism in order to write down the relevant information data ones. Magnetic stripe one arranging directional iron nature oxidize the material that the particle makes up thin. (Call it the pigment too). Glue and mix together tightly with the resin binder. Is it shut in at the magnetism substrate media to glue. ...

EM card was offered by EM company , which its working frequency is 100 kHz ~ 150 kHz,and has read/write function of contactless RFID chip. It’s low consumption and can provide various data transmission rate and data encoding .
Since EM chip is not only compatible with ISO 11784/11785 standard chip, also in line with ISO FDX / B animal identification standards, therefore, the chip can be widely use in various application management system, in particular, animal identification and tracking management....

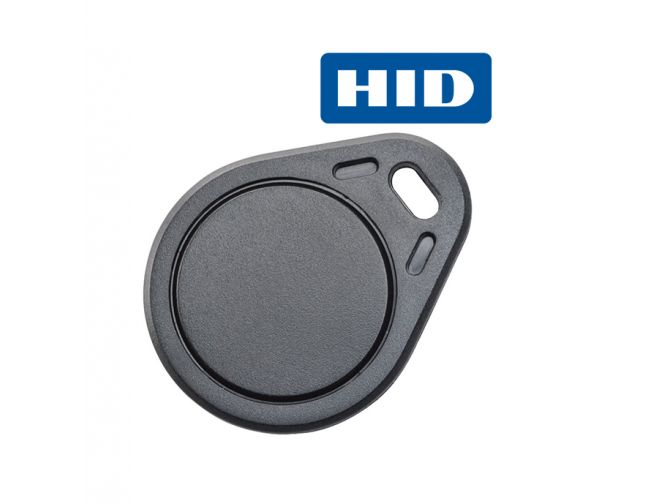

What is an HID Card?
HID cards are simply proximity cards branded by the HID global corporation, a worldwide leader in proximity cards and access control. Like other proximity and RFID cards, an HID card is simply an ID card which enables proximity technology in its everyday functions. HID cards, as well as other types of RFID cards and smart cards, are popular for access control, as well as other functions like public transportation and employee ID....

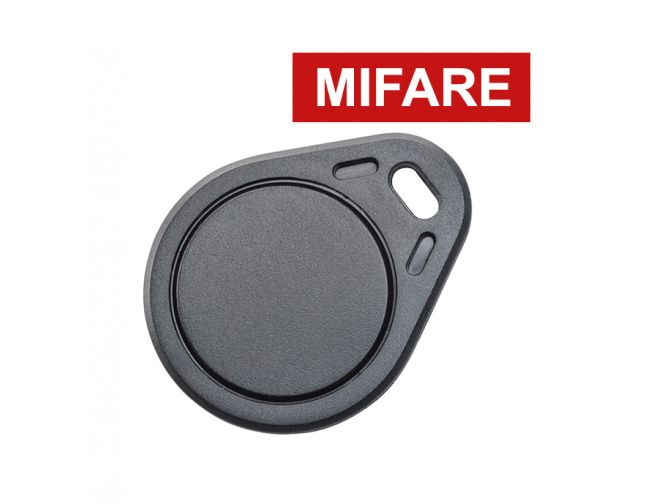

NXP has developed the MIFARE® MF1 IC S20 to be used in contactess smart cards according to ISO/IEC 14443A. The communication layer (MIFARE® RF Interface) complies to parts 2 and 3 of the ISO/IEC 14443A standard. The security layer sports the field proven CRYPTO1 stream cipher for secure data exchange of the MIFARE® Classic family.
This specification describes electrical, physical and dimensional properties of sawn wafers. ...

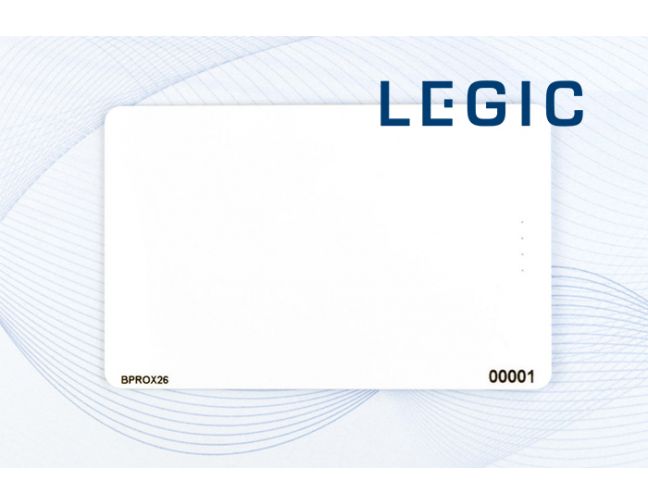

Superb quality inductive smart proximity card, white Glossy Finish. LEGIC

Features:
> multiapplications via freely programmable, variable segment lengths
> improved communication range due to small power consumption of MIMI
> highly robust due to encrypted, contactless 13.56MHz data transfer
> fast access to application via search string
> compatbility between chip generations
> encrypted data transmission
> high security due to unique authorisation comcept
> none erasable/duplicable unique number and licensee identification
> individually programmable read/write protection for each segment
> single ASIC Chip
> technology transfer and support through license comcept
...

Superb quality inductive smart proximity card, white Glossy Finish. LEGIC

Features:
> multiapplications via freely programmable, variable segment lengths
> improved communication range due to small power consumption of MIMI
> highly robust due to encrypted, contactless 13.56MHz data transfer
> fast access to application via search string
> compatbility between chip generations
> encrypted data transmission
> high security due to unique authorisation comcept
> none erasable/duplicable unique number and licensee identification
> individually programmable read/write protection for each segment
> single ASIC Chip
> technology transfer and support through license comcept
...

HITAG 2 based transponders are highly integrated and do not need any additional components beside the HITAG 2 transponder IC and the external coil. Data are transmitted bidirectionally, in half duplex mode, between Read Write Device (RWD) and HITAG transponder IC. To achieve a main stream security, data may be transmitted enciphered. HITAG 2 transponder IC offer a memory of 256 bit....

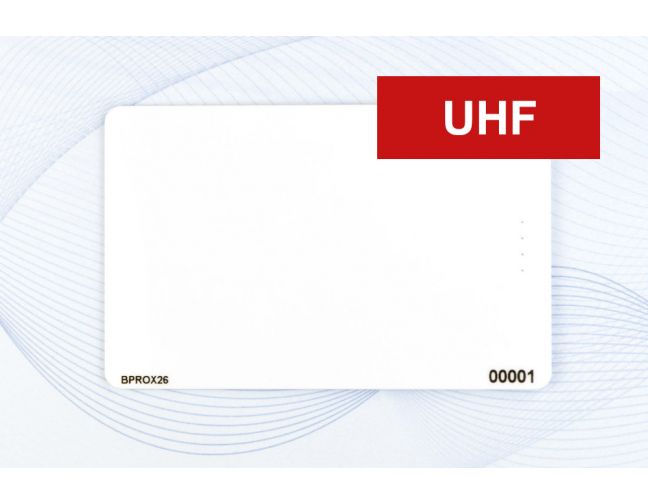

The UHF EPC global Generation 2 standard allows the commercialized provision of mass adoption of UHF RFID technology for passive smart tags and labels. Main fields of applications are supply chain management and logistics for worldwide use with special consideration of European, US and Chinese frequencies to ensure that operating distances of several meters can be realized.

The G2X is a dedicated chip for passive, intelligent tags and labels supporting the EPCglobal Class 1 Generation 2 UHF RFID standard. It is especially suited for applications where operating distances of several meters and high anti-collision rates are required.

The G2X is a product out of the NXP Semiconductors UCODE product family. The entire UCODE product family offers anti-collision and collision arbitration functionality. This allows a reader to simultaneously operate multiple labels / tags within its antenna field. UCODE G2X based label/ tag requires no external power supply.

Its contact-less interface generates the power supply via the antenna circuit by propagative energy transmission from the interrogator (reader), while the system clock is generated by an on-chip oscillator. Data transmitted from interrogator to label/tag is demodulated by the interface, and it also modulates the interrogator¡¯s electromagnetic field for data transmission from label/tag to interrogator. A label/tag can be operated without the need for line of sight or battery, as long as it is connected to a dedicated antenna for the targeted frequency range. When the label/tag is within the interrogator's operating range, the high-speed wireless interface allows data transmission in both directions.

In addition to the EPC specifications the G2X offers an integrated EAS (Electronic Article
Surveillance) feature and read protection of the memory content. On top of the specification of the G2XL the G2XM offers 512-bit of user memory.

Features and benefits:
> Key features
- 512-bit user memory (G2XM only)
- 240-bit of EPC memory
- 64-bit tag identifier (TID) including 32-bit unique serial number
- Memory read protection
- EAS (Electronic Article Surveillance) command
- Calibrate command
- 32-bit kill password to permanently disable the tag
- 32-bit access password to allow a transition into the secured transmission state
- Broad international operating frequency: from 860 MHz to 960 MHz
- Long read/write ranges due to extremely low power design
- Reliable operation of multiple tags due to advanced anti-collision
- Forward link: 40-160 kbit/s
- Return link: 40-640 kbit/s

> Key benefits
- High sensitivity provides long read range
- Low Q-factor for consistent performance on different materials
- Improved interference suppression for reliable operation in multi-reader environment
- Large input capacitance for ease of assembly and high assembly yield
- Highly advanced anti-collision resulting in highest identification speed
- Reliable and robust RFID technology suitable for dense reader and noisy environments



> Custom commands
- EAS Alarm
Enables the UHF RFID tag to be used as EAS tag without the need for a backend data base.
- Read Protect
Protects all memory content including CRC16 from unauthorized reading.
- Calibrate
Activates permanent back-scatter in order to evaluate the tag-to-reader performance.

Applications
> Supply chain management
> Item level tagging
> Asset management
> Container identification
> Pallet and case tracking
> Product authentication

Dimention
85.6×54×0.84-1.8 mm
Material
PVC, PET, ABS, PC, PETG
printing
offset, silk-screen
Surface
Matt / Glossy / Frosted
Temperature
0℃ ~+60℃
Weight
6 grams
Package
200 or 250 pcs/box, or on request...

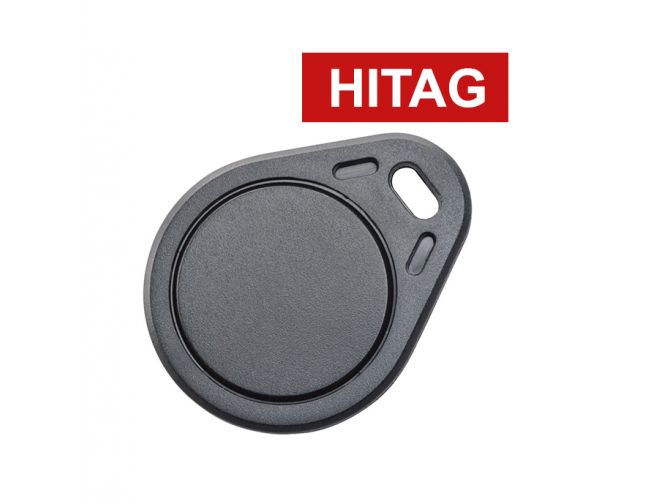

HITAG 1 based transponders are highly integrated and do not need any additional components beside the external coil.

Data between Key (RWD) and transponder is transmitted bidirectionally, in Half Duplex Mode. The HITAG 1 transponder IC offers also an encrypted data transmission.

The AntiCollision (AC) Mode, which is used mainly in long range operation, allows to handle several transponders that are at the same time in the communication field of the antenna, thus achieving highest operating reliability and permitting to handle several transponders quickly and simultaneously.
...

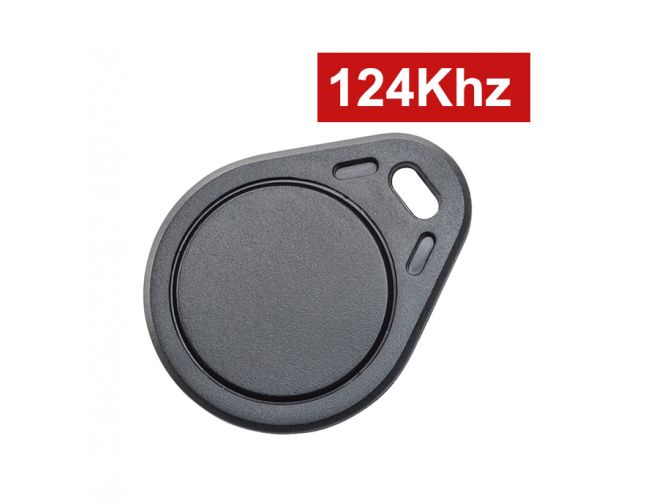

EM card was offered by EM company , which its working frequency is 100 kHz ~ 150 kHz,and has read/write function of contactless RFID chip. It’s low consumption and can provide various data transmission rate and data encoding .
Since EM chip is not only compatible with ISO 11784/11785 standard chip, also in line with ISO FDX / B animal identification standards, therefore, the chip can be widely use in various application management system, in particular, animal identification and tracking management.
EM card with 32-bit password read / write protection, 32-bit unique ID code and 10 user codes. EM card has 512 bit EEPROM memory space, is divided into 16 sectors, each sector has 32 bit, One of the lock can change the data block of EEPROM into reading only
...

NXP has developed the MIFARE® MF1 IC S20 to be used in contactess smart cards according to ISO/IEC 14443A. The communication layer (MIFARE® RF Interface) complies to parts 2 and 3 of the ISO/IEC 14443A standard. The security layer sports the field proven CRYPTO1 stream cipher for secure data exchange of the MIFARE® Classic family.
This specification describes electrical, physical and dimensional properties of sawn wafers. ...

What is an HID Card?
HID cards are simply proximity cards branded by the HID global corporation, a worldwide leader in proximity cards and access control. Like other proximity and RFID cards, an HID card is simply an ID card which enables proximity technology in its everyday functions. HID cards, as well as other types of RFID cards and smart cards, are popular for access control, as well as other functions like public transportation and employee ID.
...

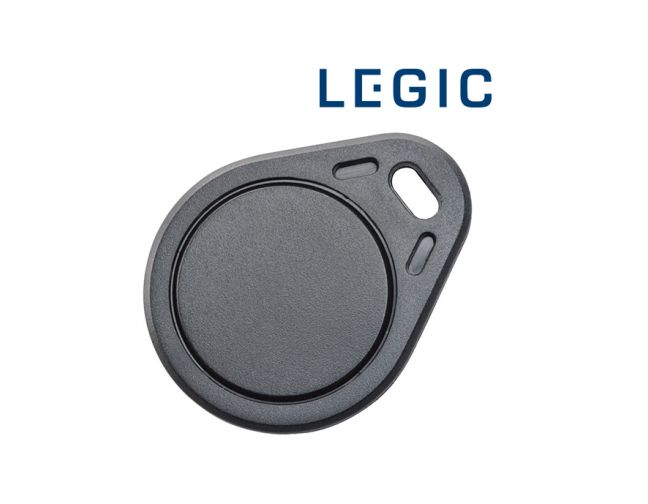

Superb quality induction card in the form of smart proximity keys LEGIC 65 BIT

Features:
> multiapplications via freely programmable, variable segment lengths
> improved communication range due to small power consumption of MIMI
> highly robust due to encrypted, contactless 13.56MHz data transfer
> fast access to application via search string
> compatbility between chip generations
> encrypted data transmission
> high security due to unique authorisation comcept
> none erasable/duplicable unique number and licensee identification
> individually programmable read/write protection for each segment
> single ASIC Chip
> technology transfer and support through license comcept
...

Superb quality induction card in the form of smart proximity keys LEGIC 32 BIT

Features:
> multiapplications via freely programmable, variable segment lengths
> improved communication range due to small power consumption of MIMI
> highly robust due to encrypted, contactless 13.56MHz data transfer
> fast access to application via search string
> compatbility between chip generations
> encrypted data transmission
> high security due to unique authorisation comcept
> none erasable/duplicable unique number and licensee identification
> individually programmable read/write protection for each segment
> single ASIC Chip
> technology transfer and support through license comcept
...

HITAG 2 based transponders are highly integrated and do not need any additional components beside the HITAG 2 transponder IC and the external coil. Data are transmitted bidirectionally, in half duplex mode, between Read Write Device (RWD) and HITAG transponder IC. To achieve a main stream security, data may be transmitted enciphered. HITAG 2 transponder IC offer a memory of 256 bit
Data between Key (RWD) and transponder is transmitted bidirectionally, in Half Duplex Mode. The HITAG 1 transponder IC offers also an encrypted data transmission.

The AntiCollision (AC) Mode, which is used mainly in long range operation, allows to handle several transponders that are at the same time in the communication field of the antenna, thus achieving highest operating reliability and permitting to handle several transponders quickly and simultaneously.
...

HITAG 1 based transponders are highly integrated and do not need any additional components beside the external coil.

Data between Key (RWD) and transponder is transmitted bidirectionally, in Half Duplex Mode. The HITAG 1 transponder IC offers also an encrypted data transmission.

The AntiCollision (AC) Mode, which is used mainly in long range operation, allows to handle several transponders that are at the same time in the communication field of the antenna, thus achieving highest operating reliability and permitting to handle several transponders quickly and simultaneously.
...

HITAG 2 based transponders are highly integrated and do not need any additional components beside the HITAG 2 transponder IC and the external coil. Data are transmitted bidirectionally, in half duplex mode, between Read Write Device (RWD) and HITAG transponder IC. To achieve a main stream security, data may be transmitted enciphered. HITAG 2 transponder IC offer a memory of 256 bit....

EM card was offered by EM company , which its working frequency is 100 kHz ~ 150 kHz,and has read/write function of contactless RFID chip. It’s low consumption and can provide various data transmission rate and data encoding .
Since EM chip is not only compatible with ISO 11784/11785 standard chip, also in line with ISO FDX / B animal identification standards, therefore, the chip can be widely use in various application management system, in particular, animal identification and tracking management....

NXP has developed the MIFARE® MF1 IC S20 to be used in contactess smart cards according to ISO/IEC 14443A. The communication layer (MIFARE® RF Interface) complies to parts 2 and 3 of the ISO/IEC 14443A standard. The security layer sports the field proven CRYPTO1 stream cipher for secure data exchange of the MIFARE® Classic family.
This specification describes electrical, physical and dimensional properties of sawn wafers. ...
