POWER SUPPLY

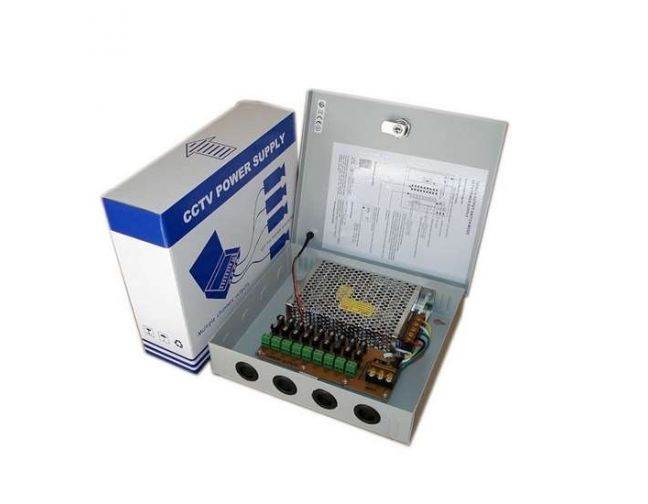

High-quality power supply that has overload protection and is suitable for cameras PTZ, IR, Illuminators, VDR, etc.

Input voltage: 90-264V AC 50 / 60Hz
Output voltage: 12V + 10%
Maximum output current: 5A max
Output distribution: 9 channels X0.5A max per output with glass fuse and status indicator of each output
Overload protection - overcurrent with current limiter
On / Off switch
Suitable for cameras, PTZ, IR, Illuminators, VDR, etc.
Weight: 1.6kg
Dimensions: 240X210X65mm...

Outstanding quality power supply which is suitable for cameras

Model
DH-PFM322

General Input
AC100~240V, 50/60Hz, max. 0.6A

Output
DC12V(﹢7%,-3%)_0.7A(±3%) (each group)

Outgoing Line Length
AC wire: 50cm (1.64ft), DC wire: 80cm (2.62ft)

Working Temperature
-30℃~+70℃(-22℉~+158℉)

Working Humidity
<90% RH

Weight
210g(0.46lb)

Dimension(LxWxH)
148mmx70mmx31mm (5.83”x2.76“x1.22”)...

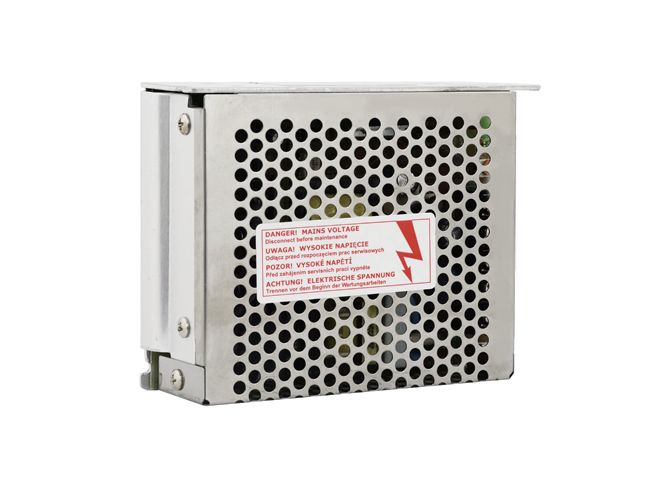

A quality power supply at affordable price, for cameras, recorders and more

Supply voltage: 85÷264V AC
Current consumption: 0,18A@230VAC max.
Supply power: 25W max.
Efficiency: 74%
Output voltage: 12V DC
Output current: tAMB<30°C 2A - see graph 1.
Output current: tAMB=40°C 1,4A - see graph 1.
...

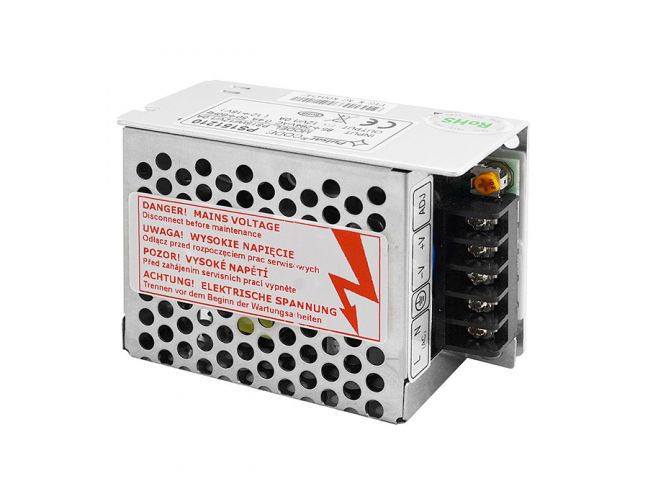

High quality and reliable power adapter for security cameras and recorders

Power supply: 85÷264VAC
Power supply output: 1A/12VDC
Voltage adjustment range: 12V÷15V
Efficiency: 74%
Protections: SCP, OLP, OVP*
Dimensions: L=85, W=60, H=37 [+/- 2mm]
Warranty: 2 year from the production date
For mounting on a DIN rail, required bracket: PSDIN1
...
