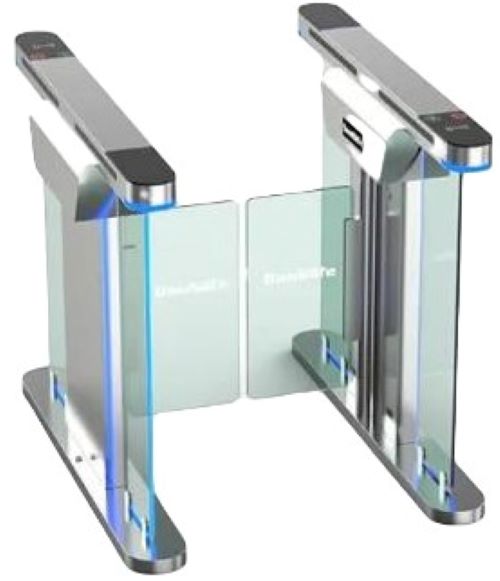

WATERPROOF OPTICAL SWING TURNSTILE DAOSAFE DS218
The DS218 offers a sleek and stylish access control solution with a super slim 120mm cabinet, ideal for both indoor and outdoor use. It features white tempered glass side panels with LED lights, providing a visually appealing design. The system is waterproof (IP65) and includes advanced security functions such as anti-intrusion and anti-reverse.
-
The Waterproof DS218 Optical Swing Turnstile is designed with a sleek 120mm cabinet, making it an elegant solution for access control. It is equipped with white tempered glass side panels adorned with dazzling LED lights, enhancing the aesthetic appeal of any site. The turnstile is waterproof with an IP65 rating, ensuring durability against water and rain, making it suitable for both indoor and outdoor environments. The black tempered glass card panel is robust and resistant to scratches. This model features a super slim design, providing a cozy visual effect, and the cabinet's lighting changes between red, green, and blue colors. The turnstile offers a variety of advanced security features, including anti-intrusion and anti-reverse functions, and supports integration with third-party access control systems.
Main characteristics
Model No.: DS218
Brand: Daosafe
Framework Material: 304 Full Stainless Steel + tempered glass side panels with dazzling LED light
Arm Material: Plexiglas - transparency

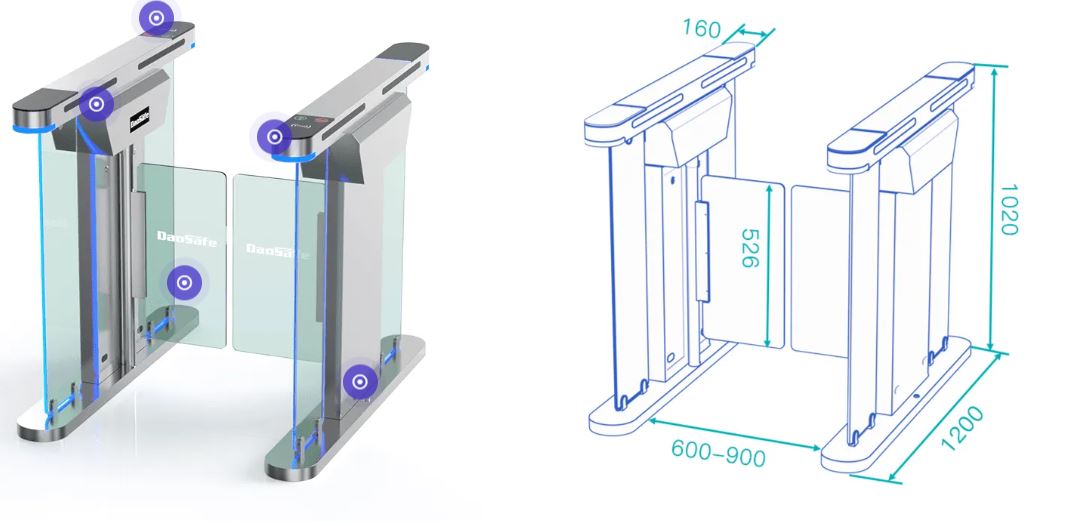

Dimension: 1200 * 120 * 1020mm
Weight: 60kg
Passage Width: 600mm (standard), 900mm (handicap)
Passing Direction: Single directional / Bi-directional
MCBF: 10 million
Power Supply: AC220V/110V, 50/60Hz
Operation Voltage: 24V DC
Power Consumption: 40W
Operation Temperature: -20 °C - 75 °C
Operation Humidity: 0 ~ 95% (No freeze)
Working Environment: Indoor / Outdoor
Flow Rate: 45-55 people per minute
LED Indicator: Yes
Infrared Sensor: 6 pairs (standard)
Emergency: Automatic arm open when power off
Communication: Dry contact, Relay signal, RS485
