SPEED GATE HIGH GLASS TURNSTILE DAOSAFE DSN-80
With the DSN-80 speed gates, you ensure quick and secure passage! They feature fast opening and closing speeds, slim design, and glass arms that reach up to 1400mm for high security. The passage width is 600mm for normal use and 900mm for wider paths, allowing wheelchairs and large luggage. Ideal for indoor and outdoor use, suitable for government buildings, banks, airports, and stadiums.
-
With the DSN-80 high-speed gates, you will ensure immediate and secure passage in your area! The gates feature fast opening and closing speed, exceptionally slim housing, and various heights for the glass arms.
The glass arm can be heightened up to 1400mm for high-level security, preventing unauthorized persons from climbing. The passage width can reach 600mm for normal use and can support a 900mm arm for a wider passageway, allowing wheelchair users or people with large luggage to pass.
It is ideal for both indoor and outdoor spaces due to its waterproof design. Suitable for high-end facilities such as government buildings, banks, airports, stadiums, and more.
Main characteristics
Model No.: DSN-80
Brand: Daosafe
Framework Material: Steel + stoving varnish
Swipe Card Panel Material: Tempered glass
Arm Material: Plexiglas-transparency (standard), tempered glass (optional)

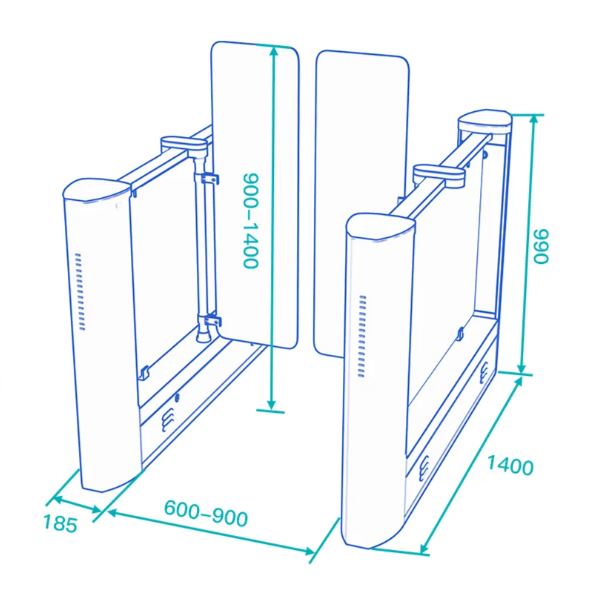

Dimension: 1400 * 185 * 990mm
Weight: 60kg/pcs (single core), 75kg/pcs (double core)
Passage Width: 600-900mm (One passage)
Glass Height: 1200mm (standard), 900mm-1400mm (optional)
Passing Direction: Single directional / Bi-directional
MCBF: 10 million
Power Supply: AC220V/110V, 50/60Hz
Operation Voltage: 24V DC
Power Consumption: 40W-60W
Operation Temperature: -15 °C - 70 °C
Operation Humidity: 0 ~ 95% (No freeze)
Working Environment: Indoor / Outdoor
Flow Rate: 35 people per minute
LED Indicator: Yes
Infrared Sensor: 6 pairs (standard)
Emergency: Automatic arm open when power off
Communication: Dry contact, Relay signal, RS485
