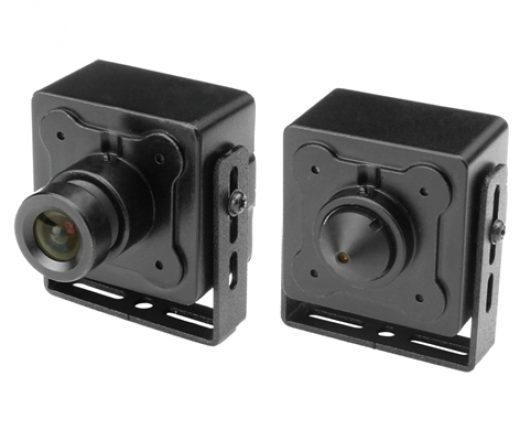

HIDDEN-MINI CAMERA 1MEGAPIXEL 720P HDCVI HAC-HUM31000B
Hidden 1MP high quality video camera with ICR filter.
- 1/2.9" 1Megapixel CMOS
- 25/30fps@720P
- High speed, long distance real-time transmission
- OSD Menu, control over coaxial cable
- DWDR, Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
- 3.6mm fixed lens
- DC12V
-
Camera
Image Sensor
1/2.9" 1Megapixel CMOS
Effective Pixels
1280(H)×720(V)
Electronic Shutter
1/50s~1/100,000s 1/60s~1/100,000s
Video Frame Rate
25/30fps@720P
Synchronization
Internal
Mini. Illumination
0.01Lux@F1.2(AGC ON)
Video Output
1-channel BNC HDCVI high definition video output
Camera Features
Day/Night
Auto(Electronic) / Color / B/W
Backlight Compensation
DWDR
Noise Reduction
2D/3D
OSD Menu
Support
Lens
Focal Length
3.6mm
Angle of View
H: 79.7º
Mount Type
M12
General
Power Supply
DC12V±10%
Power Consumption
Max 1.5W
Working Environment
-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance
Over 800m via 75-3 coaxial cable
Dimensions(W×D×H)
30mm×30mm×15.9mm
Weight
0.05kg
Material
Metal
