MINI BULLET NETWORK CAMERA WATER-PROOF 2MP WDR IR - DH-IPC-HFW4231S
Exceptional mini bullet network camera with very good picture quality 2MP H. 265 & H.264, waterproof that makes it capable for outdoor use and infrared for better viewing in the dark.
· 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
· H. 265&H.264 triple-stream encoding
· 50/60fps@1080P(1920×1080)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 3.6mm fixed lens (6mm optional)
· Max. IR LEDs Length 30m
· IP67, PoE
-
Camera
Image Sensor
1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.009Lux/F2.0( Color,1/3s,30IRE) 0.07Lux/2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up tp 30m (98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
18
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
3.6mm (6mm optional)
Max. Aperture
F2.0 (F2.0)
Angle of View
H: 87° (51°), V: 48° (30°)
DH-IPC-HFW4231SRelated Products
· Supports IEEE802.3af, IEEE802.3at standard
· Conform IEEE802.3, IEEE802.3u and IEEE802.3ab standards
· Wide temperature design: -10°C~55°C...

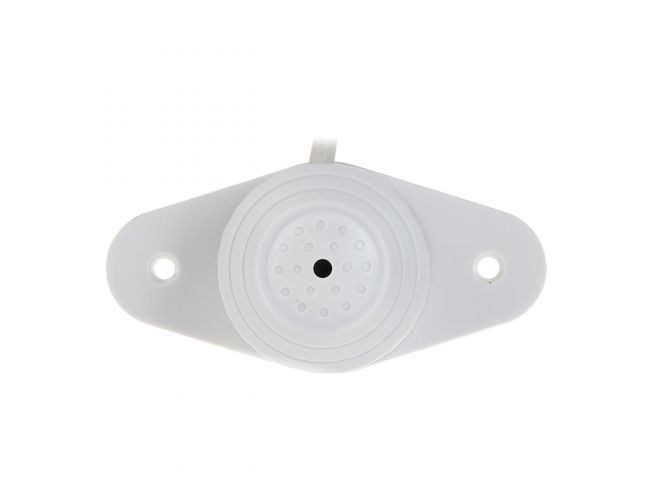

>Omni-directional condenser microphone, high fidelity;
