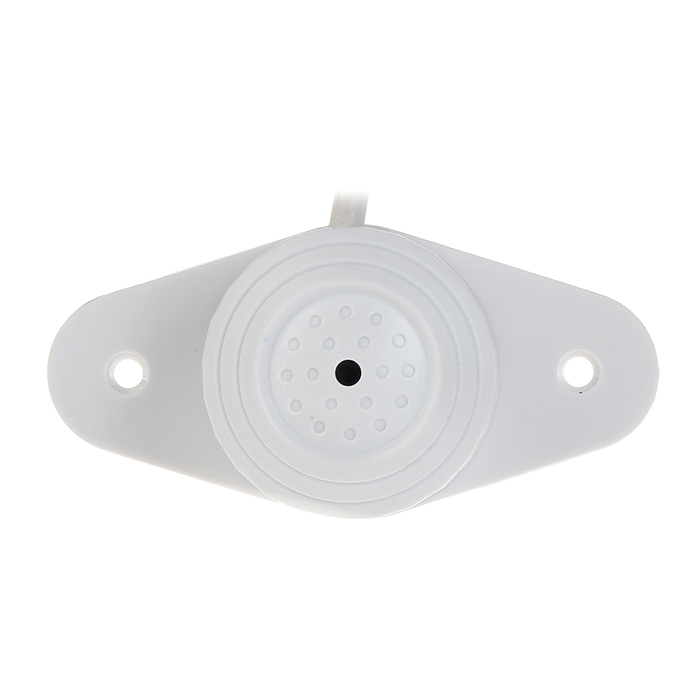

MICROPHONE DH-HAP100
Excellent condenser microphone for quality audio, providing protection against power polarity and electrostatic cleaners.
>Omni-directional condenser microphone, high fidelity;
>30KV Air contact ESD, built-in Lightning Protection, power supply polarity reversal protection and electrostatic protection;
>Pinhole design, hidden installation; match with cameras or storage devices which have audio function!
-
Scope
5-40m
Sensitivity
40dB(-45~-20dB adjustable)
Frequency response
20Hz～20kHz
Directional characteristic
Omni-directional
SNR70dB(1m 40dBsound source SPL)
Dynamic range
104dB(1KHz at Max dB SPL)
Max. sustainable sound pressure
120dB SPL(1KHz, THD 1%)
Output impedance
600Ω(non-equilibrium)
Output signal amplitude
2.5Vpp/-25dB
Working voltage
DC 12V(9~15V)
Working current
60mA(50~100mA)
Working temperature
-30°C ～ +70°C(-22°F~+158°F)
Color White
Outer shell PC Dimension
63mmx30mmx22mm(2.48”x1.18”x0.87”)
Weight
34g(0.07lb)
Carried standard
CE/FCC
