DOME CAMERA 3MP HD NETWORK MINI IR IP67 IPC-HDBW1320 E (IP)
Unique dome camera, waterproof, with excellent 3MP picture quality and IR for better viewing in the dark.
>1/3” 3Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>Max 20fps@3M(2048x1536) (2304×1296)&25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm optional)
>Max. IR LEDs Length 30m
>IP67, IK10, PoE
-
Camera
Image Sensor
1/3” 3Megapixel progressive scan CMOS
Effective Pixels
2304(H) x1536(V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1s~1/100000s
Min. Illumination
0. 1Lux/F2.0(Color), 0Lux/F2.0(IR on)
Camera Features
Max. IR LEDs Length
30m
Day/Night
Auto(ICR)/Color/B/W
Lens
Focal Length
3.6mm(2.8mm optional)
Max Aperture
F2.0(F2.0)
Focus Control
Manual
Angle of View
H: 81°(92°)
IPC-HDBW1320 E (IP)Related Products

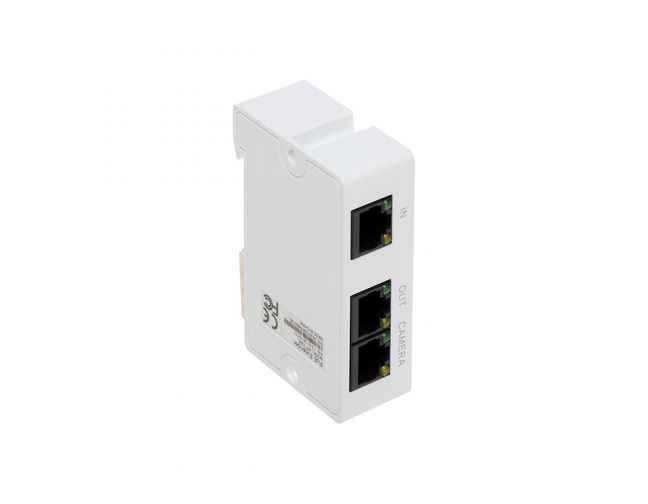

· Support passive PoE cascade power supply and Ethernet
data exchange
· Support IEEE 802.3af/at standard power supply IP Camera
· Cooperate with High PoE Midspan (PFT1200), able to
cascade level 2 PoE Extender, connect to 3 IPC (power
consumption <=8W), max transmission distance 300m
· 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M
supply power for IP Cam; 1*RJ45 10/100M supply power for
the next extender
· Installation mode: junction box internal mounting, DIN rail
mounting...

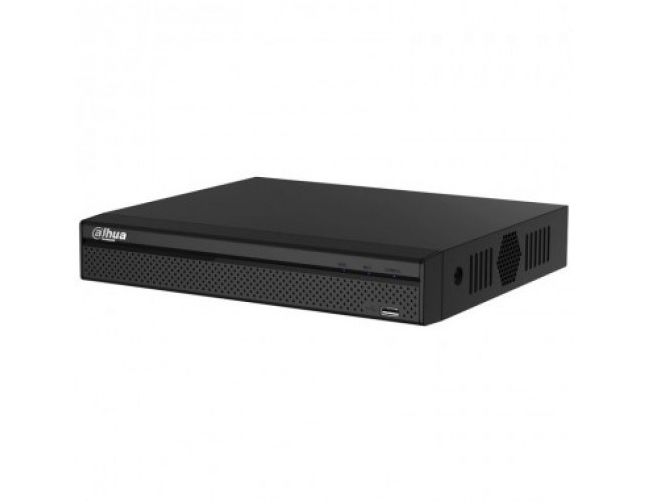

· Embedded processor
· H.264+/H.264 video compression
· Support HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 6/12/24 channels IP camera inputs, each channel up
to 5MP
· Max 24/48/96Mbps Incoming Bandwidth
· Smart Search and Intelligent Video System...
Model
DH-PFM322
General Input
AC100~240V, 50/60Hz, max. 0.6A
Output
DC12V(﹢7%,-3%)_0.7A(±3%) (each group)
Outgoing Line Length
AC wire: 50cm (1.64ft), DC wire: 80cm (2.62ft)
Working Temperature
-30℃~+70℃(-22℉~+158℉)
Working Humidity
<90% RH
Weight
210g(0.46lb)
Dimension(LxWxH)
148mmx70mmx31mm (5.83”x2.76“x1.22”)...
