TURNSTYLE 3 WINGS FULL HEIGHT BTE 312/S
Single turnstyle made entirely of steel. Coating of electrostatic paint on rotor, bar and turnstyle body. Manual (available and mechanical) and hydraulically, silently immobilized and vibration absorbing system.
It has 3 blades and 9 bars / blade. Locking system, anti-corrosion protection, available for indoor / outdoor installation (with special housing), allows two-way passage, counter-lock, emergency release (from panic button activation or fire signal) interrupted flow for strict control of incoming
Flow rate min. 8 - max. 17 people / minute. Operation at temperatures from -17 ° C to + 68 ° C, compatible with all access control systems, operation and metal detecting systems.
Power supply 220V AC / 50Hz, 24-27V DC. Dimensions: 1400x1370x2260mm, Weight: 310 kg.
Optional: Countermeasurer (manual or electromechanical), manual control unit (infrared or cable), alarm unit, earthquake sensor, card readers, moving lights, direction indicators, metal detector, computer interface module, dividers, , etc. OZAK
-
Single turnstyle made entirely of steel. Coating of electrostatic paint on rotor, bar and turnstyle body. Manual (available and mechanical) and hydraulically, silently immobilized and vibration absorbing system.It has 3 blades and 9 bars / blade. Locking system, anti-corrosion protection, available for indoor / outdoor installation (with special housing), allows two-way passage, counter-lock, emergency release (from panic button activation or fire signal) interrupted flow for strict control of incomingFlow rate min. 8 - max. 17 people / minute. Operation at temperatures from -17 ° C to + 68 ° C, compatible with all access control systems, operation and metal detecting systems.Power supply 220V AC / 50Hz, 24-27V DC. Dimensions: 1400x1370x2260mm, Weight: 310 kg.Optional: Countermeasurer (manual or electromechanical), manual control unit (infrared or cable), alarm unit, earthquake sensor, card readers, moving lights, direction indicators, metal detector, computer interface module, dividers, , etc. OZAK
BTE-312-SRelated Products

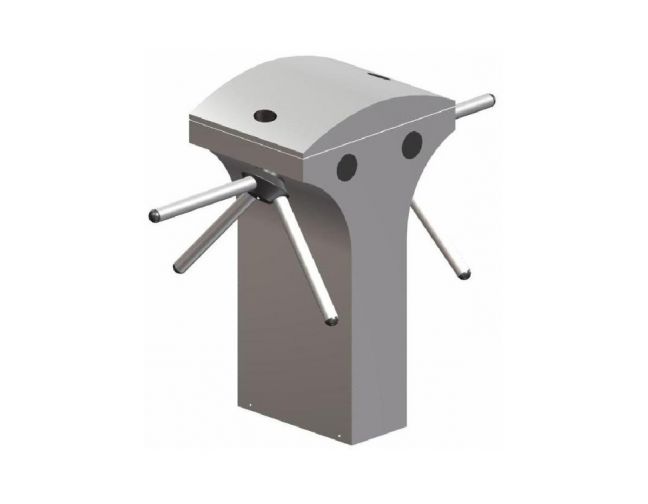

It has 2 x 3 aluminum 470mm (available material options: steel, wood, acrylic, painted steel). Closure system, anti-corrosion protection, available for internal and external installation (with special cover), allows for bi-directional passage (for one person at a time), anti-obstruction system, bar release in case of fire emergencies), Permitted passage and intermittent flow for strict control of the incoming. It also has light indications of stop and direction at the top and bottom.
Flow rate min. 12 - max. 30 persons / minute. Operation at temperatures from -17 ° C to + 68 ° C, compatible with all access control systems, operation and metal detecting systems.
Power supply 220V AC / 50Hz, 24-27V DC. Dimensions: 450x1000x300 mm (+ 2 x 470mm aluminum bars), Weight: 56 kg.
Optional: Automatic / Manual Emergency Bar Cut, Countermeter (manual or electromechanical), manual control unit (with infrared or cable), earthquake sensor, alarm unit, card readers, computer interface module, dividers, , etc....
