The Nebula DSN-50 is a tripod turnstile designed for access control at building entrances. It has a compact yet sturdy construction with dimensions of 360mm x 260mm x 980mm and weighs 35kg.

The turnstile framework is made of 304 brushed stainless steel for durability and has a high-end black tempered glass top panel for an attractive look. The swing arms are also 304 stainless steel with rubber protection.

The DSN-50 utilizes an array of LED lights - blue indicates power on, green for valid access granted, and red for invalid access attempt. This clear lighting guidance helps direct foot traffic. The top panel can be customized for different access authentication methods like card, QR code, or biometrics.

The turnstile arms have a 550mm passage width to allow one person through at a time, with a 500mm arm length. It can be set for either single direction or bi-directional operation. The rated throughput is 35 people per minute.

For safety, the arms will drop horizontally upon power failure to allow free exit. Infrared sensors detect illegal entry attempts and can trigger an alarm. An automatic reset functions locks the arms after a 5 second delay if no one passes through.

The turnstile body is surrounded by unique blue LED light strips that illuminate the entrance area. High quality construction uses molding and robotic welding for reliability, backed by a 3-year warranty.

Flexible for different sites, the DSN-50 can operate indoors or outdoors in temperatures from -20°C to 75°C. It has a long life cycle rated for 10 million passages (MCBF).

Main characteristics

        Model number: DSN-50

        Brand: Daosafe

        Framework Material: 304 brushed stainless steel+ High end black tempered film glass

        Swipe Card Panel Material: Tempered glass

        Arm Material: 304 Stainless Steel with rubber protector

        Dimension: 360 *260 * 980mm

        Weight: 35kg/pcs

        Passage Width: 550mm (Arm length: 500mm)

        Passing Direction: Single directional / Bi-directional

        MCBF: 10 million

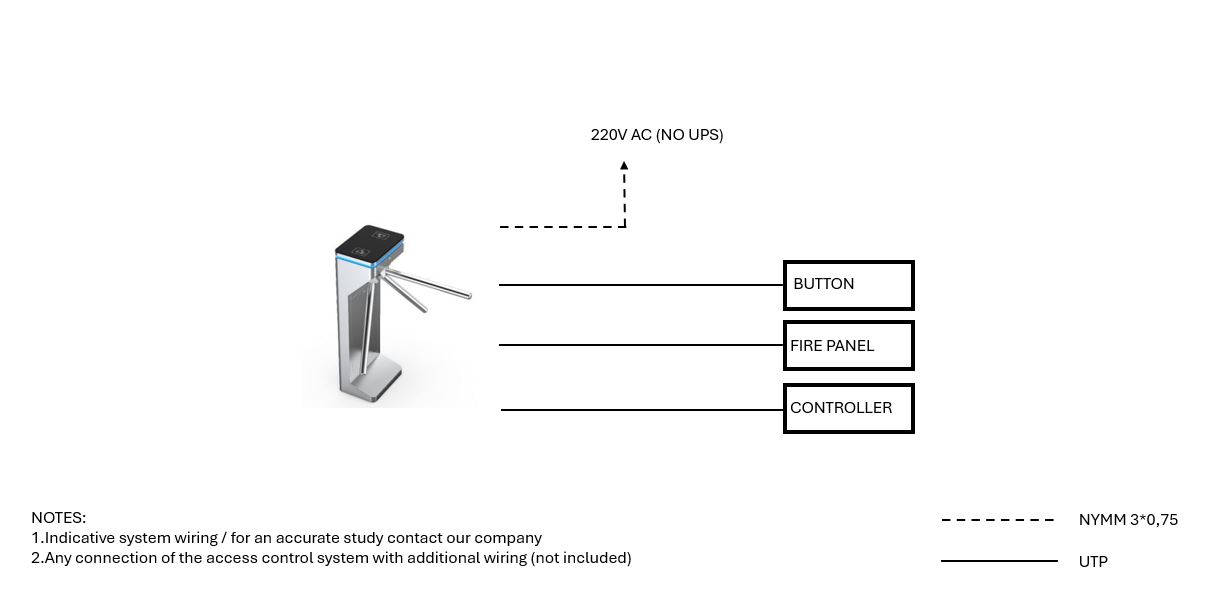

        Power Supply: AC220V/110V, 50/60Hz

        Operation Voltage: 24V DC

        Power Consumption: 20W

        Operation Temperature: -20 °C - 75 °C

        Operation Humidity: 0 ~ 95% (No freeze)

        Working Environment: Indoor / Outdoor

        LED Indicator: Unique blue LED strip (front+ top+side)

        Emergency: Arms will drop down automatically

        Communication: Dry contact, Relay signal, RS485
