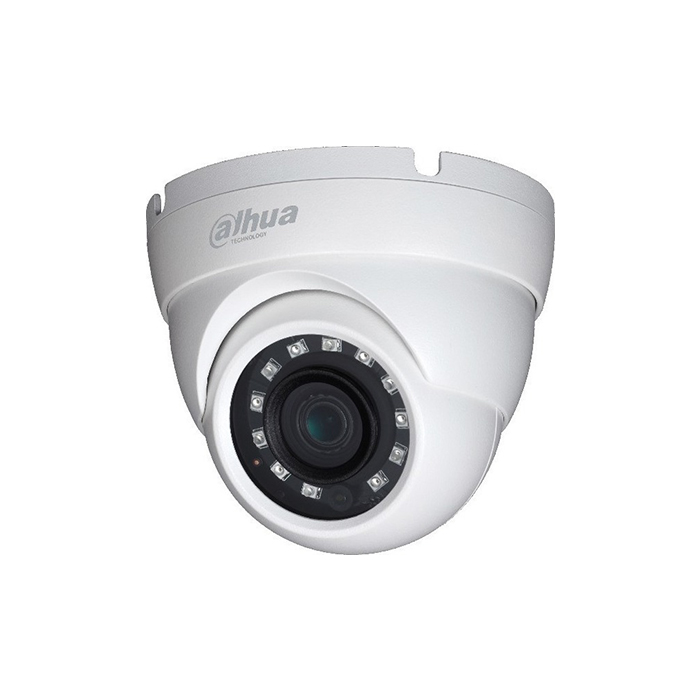

DOME CAMERA WATER-PROOF 4MP HDCVI IR - DH-HAC-HDW1400M
Superb quality camera dome with top 4MP image resolution, waterproof, capable of outdoor use and infrared up to 30 meters for better viewing in the dark.
- Max 30fps@4MP
- HD and SD output switchable
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Max. IR length 30m, Smart IR
- IP67, DC12V
-
Camera
Image Sensor
1/2.7" CMOS
Effective Pixels
2560(H)×1440(V), 4MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio
More than 65dB
IR Distance
Up to 30m (98feet)
IR On/Off Control
Auto / Manual
IR LEDs
12
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
Board-in
Focal Length
3.6mm (2.8mm, 6mm Optional)
Max Aperture
F2.0
Angle of View
H: 76.4° (97.0°/48.6°) V: 41.6° (52°/27.9°)
