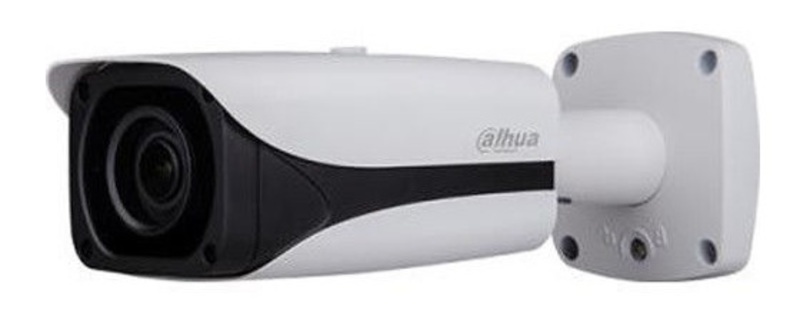

BULLET CAMERA - FACE DETECTION WIFI 2MP WDR IR IPC-HFW5231E-ZE
Unique face-recognition camera, 2MP 1080P high quality video, antivandal, waterproof, with IR for better viewing in the dark.
· 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
· H.265&H.264 triple-stream encoding
· 50/60fps@1080(1920×1080)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.7mm ~13.5mm motorized lens
· 2/1 Alarm in/out, 1/1 audio in/out
· Max. IR LEDs Length 50m
· Micro SD memory, IP67, IK10, PoE
-
Camera
Image Sensor
1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination0.006Lux/F1.4 ( Color,1/3s,30IRE)0.05Lux/F1.4 ( Color,1/30s,30IRE)0Lux/F1.4 (IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 50m (164ft)
IR On/Off Control
Auto/ Manual
IR LEDs
4
Lens
Lens Type
Motorized/ Auto Iris(DC)
Mount Type
Board-in
Focal Length
2.7mm~13.5mm
Max. Aperture
F1.4
Angle of View
H: 101°~31°, V:54°~17°
IntelligenceIVS
Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions
Face Detection
Video
Compression
H.265+/H.265/H.264+/H.264
IPC-5231E-ZERelated Products
Manufacturer: DAHUA
Excellent quality second-level switch for demanding applications.
· Layer 2 unmanaged access switch
· All gigabit Ethernet ports
· Lightning protection
· Plug and play
· Adopts metal enclosure
· Good heat dissipation...
· Layer 2 unmanaged access switch
· All gigabit Ethernet ports
· Lightning protection
· Plug and play
· Adopts metal enclosure
· Good heat dissipation...
Manufacturer: DAHUA

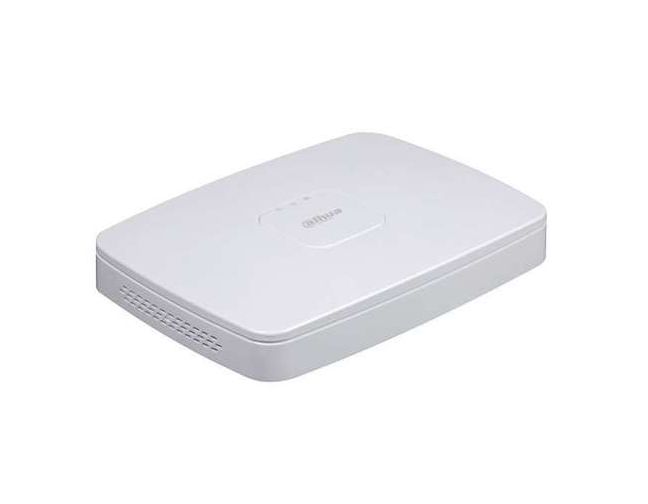

Exceptional 8-channel recorder, capable of transmitting up to 8MP and decoding H.265.
