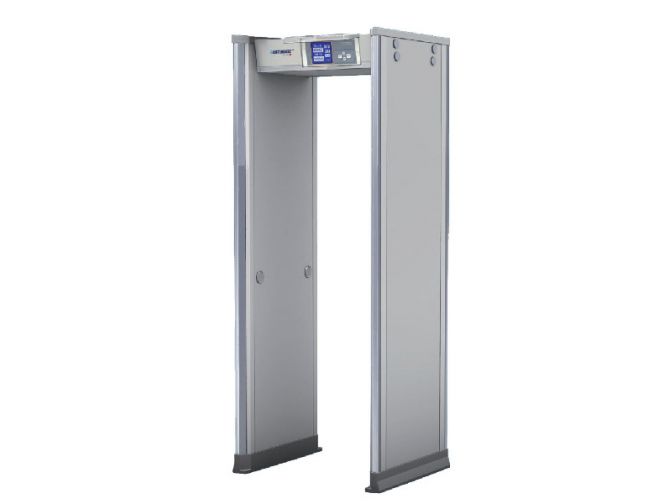

MAGNETIC GATE WATERPROOF - THRUSCAN SX-WP
Extremely qualitative and reliable weatherproof detector of metalsbut also non-metal objects that are considered dangerous by the International Security Agency, found on the man who are scanned. Detects all threat objects even concealed, hidden with camouflage and / or wrapped. The technology of very low frequency VLF that uses for detecting, it is capable of satisfying remarkable uses to control pregnant women and those who are burdening the pacemaker.
-
International norms (NILECJ-0601 L1-5/IP55/EN60950 Class 1) In conformity with CE European Union Norms and produced under ISO 9001:2008 QMS
Certified in Compliance to EN 61000-6-3, EN 61000-6-1 regulations and in compliance with DIRECTIVE 2002/95/EC (restriction of the use of certain hazardous substances in electrical and electronic equipment)IP 55 WEATHERPROOF- OUTDOOR OPERATION (EN 60529)Multi-Zone - 9 Matrix Detection Zones(Up/Middle/Down and Left/Middle/Right)Separate Zone Sensitivity Setting FeatureWhilst Normal Operation, displays IN/OUT Counters and Security Level on 64x128 Graphic LCD without abbreviations so that Security Staff can easily understandCapable to Detect both Ferrous and Non-Ferrous Metallic Objects Considered Dangerous by International Security AuthoritiesCan detect test objects both individually and in combinationDisplays the Detected Metal Objects location on Both Side Panels LEFT/RIGHT from bottom to top with Continuous LED Zone IndicatorsDetects all threat objects even concealed, hidden with camouflage and/or wrapped. Impossible for such threat objects to pass through the WTMD without causing an alarmNo Interferences between Zones and No False AlarmsHomogeneous Magnetic Field - No Dead Points - Same Detection Capability from bottom to topDetects Metals regardless their orientation20 sensitivity levels, 246 adjustable sensitivity steps at each,Preset NILECJ Standard Sensitivity Program, 7 Preset international Security ProgramsAutomatic Frequency Selection FeatureMetal Density-Mass, Signal Strength Display at 10-level-VU meter with green, yellow, red LEDs easily allows sight from distanceAuto Calibration (Automatically calibrates itself up to Environmental Conditions) No Set Up Changes necessary when relocated and/or new Magnetic Objects brought Near-ByHuman Health friendly Very Low Frequency VLF technology. No affects to Pace Makers, Pregnant and Magnetic MediaGreen/Red bicolor traffic through LEDs easily allows sight from distance 60 Persons/MinuteVisual graphic display of magnetic interference from environmentAdjustable audio alarm at 10 tons/level or Soundless (Mute) operation and adjustable tone durationReloading the factory default settings by one-touch buttonFive Digit Incoming Counter (can be made Invisible)IR Protection Feature enabling perfect low false alarm operation/ Continuous Detection Mode Selection EnabledInterference free Operation from other Electronic DevicesDoes Not affect other Electronic Equipments. Necessary filteringprecautions have been takenFour-digit changeable digital Pin Code and Mechanical Lock for securityAutomatic Failure Display with Continuous Self-Checking of Key Parameters. (BITE - Built-in Test Equipment)Easy Programming and Display via High Resolution GLCD (Graphic Liquid Crystal Display)4 Menu Languages, Standard menu in English, German, Spanish and TurkishRelay output for recording CCTV, Photo Taken-Recording, controlling turnstiles, etc.Built-in Uninterruptible Power Supply (UPS) enabling 2 hours operation without mainsBattery ON/OFF Feature enabling Operation Without MainsEasy-to-mount and assemble walk through metal detector (15 Minutes)Male/Female Socket-Connector DesignManufactured for 7/24 Continuous Operation74 cm Net Passage Width and 200 cm Net Passage HeightInterference free Operation at Middle Level Sensitivity of 10 cm Distance Constant Metals and 200 cm distance Moving Metallic ObjectsInstallation and Operation without interference between two detectors up to a distance of min. 5 cmAudio-Visual alarms are noticeable at a range of 4 metersMicro-Processor Settings does not change when there is an electricity cut-offMagnetic Field inside all passage area is 0,1 GaussNo interference with Storage Media, Flash Memories, CD, Diskettes and other electronic devicesAll Electronic Units (electronic unit, power supply, battery, adapter etc..) are inside the Equipment. No outer units.Floor Fixing Corrosion Resistant Metal Footers for proper assembly and durable useSTANDARD ABS Rain Shelter on TopABS Protective Footers for increased protection and strong fixingOPTIONAL-SCADA software-controlled remote data communication and Networking of Multiple Metal Detectors; Software Change settings by PCOPTIONAL - IRDA - Remote Control Unit (Optional)Detection Functions has been tested with ECAC/NIJ/TSA Test Kits and CertifiedTechnical Features:•Ambient Temperature:
-20°C to +70°C
•Operating voltage:
70VAC – 270VAC / 50Hz - 60Hz
•Power:
10W Stand By- 20W (Alarm)
Net Passage:
740x680x2000
External:
850x680x2200 mm
Package Dimensions (W x L x H):Box 1:
81 x 235 x 21 cm
Box 2:
43 х 81 х 27 cm
Box 3:
62 х 101 х 12 cm
Gross Weight:
83 Kg
Net Weight:
63 Kg
