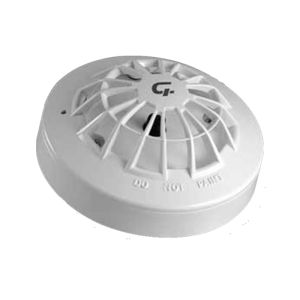

ΑΝΙΧΝΕΥΤΗΣ ΘΕΡΜΟΔΙΑΦΟΡΙΚΟΣ ΣΗΜΕΙΑΚΗΣ ΑΝΑΓΝΩΡΙΣΗΣ

Standard temperature detector Supply Voltage:
17 to 28 Volts dc

Quiescent Current:
300uA @24V

Storage Temp:
-30°C to +80°C Min

Continuous Operating Temperature:
-0°C

Application Temperature:
Class EN54–5:2000 A2S typical 25°C, max 50°C

Static Response Temperature °C:
Min 54 Type 58 Max 62

Sensitivity:
25°C to 90°C: 1°C/Count ; -20°C returns 8 counts

Alarm Indicator:
Red Light Emitting Diode (LED) Alarm LED Current:
2mA Vibration, Impact & Shock: To EN54-5:2000 marked.

IP Rating:
53

Dimensions:(diameter x height)
Detector:
100mm x 39mm

Detector in Base:
100mm x 47mm

Weights: Detector:
100g;

Detector in Base:
157g

High Temperature Detector Specifications are the same as those for the standard temperature detector described above, apartfrom the following points:
Application Temperature:
Class EN54–5:2000 CS typical 55°C, max 80°C
Static Response Temperature °C: Min 84 Type 90 Max 96
Sensitivity: 25°C to 90°C: 2·17°C/Count -20°C returns 20 counts
